Fleet>Excavator>XG836FL

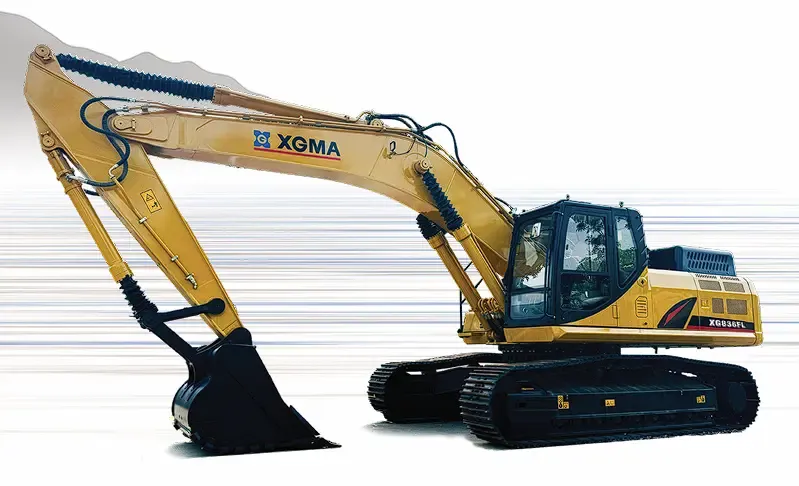

XG836FL
XG836FL view 2
XG836FL view 3

XG836FL

XGMA • Excavator

The XGMA XG836FL is a premium 35-ton crawler excavator engineered for maximum performance in mining, quarrying, infrastructure development, and heavy construction projects. Available with either the 264 kW Cummins QSL8.9 or 212 kW Isuzu 6HK1 diesel engine, it offers outstanding hydraulic performance, excellent fuel economy, and reliable operation in the most demanding environments. Featuring a 1.6 m³ bucket, reinforced working equipment, and a heavy-duty crawler undercarriage, the XG836FL delivers exceptional digging force, high lifting capacity, and excellent machine stability. Its modern operator cabin, intuitive controls, and easy-service design help maximize uptime and operator comfort, making it an excellent choice for contractors seeking maximum productivity and long-term reliability.

Starting from
Call our sales team for pricing
Class
35 T class · Tracked
Bucket Capacity
1.6 m³
Operating Weight
35,000 kg
Engine Power (kW)
264 kW

Technical Specifications

Comprehensive engineering data for operational planning.

General

Class35 T class · Tracked
UndercarriageTracked

Dimensions & Weights

Operating Weight35,000 kg

Engine

Engine MakeCummins
Engine ModelQSL8.9
Engine Power (kW)264 kW
Engine Power (HP)354 HP
Rated Engine Speed2,000 rpm

Performance

Max. Travel Speed5.2 km/h
Gradeability70%
Fuel Tank Capacity595 L
Power-to-Weight7.5 kW/T

Excavator Specifications

Bucket Capacity1.6 m³
Breakout / Digging Force227 kN
Boom Length6,470 mm
Arm Length3,185 mm
Swing Speed10.6 rpm
Ground Pressure69.4 kPa
Hydraulic Tank Capacity310 L

Original Values (as stated)

Travel Speed5.2 km/h - 3.3 km/h

Additional Specs

ManufacturerIsuzu
Engine Model6hk1
Rated Power212 kW
Travel Speed5.2 km/h - 3.3 km/h
Bucket Digging Force227 KN

Original Headline Specs

Machine Class35 Ton Crawler Excavator
Machine Class (description)Built for continuous heavy-duty operation, the XG836FL offers outstanding stability and performance for mining, quarrying, and major infrastructure projects requiring maximum productivity.
Engine Power264 kW Cummins QSL8.9 or 212 kW Isuzu 6HK1
Engine Power (description)Available with premium Cummins or Isuzu powerplants, the XG836FL provides exceptional horsepower, responsive hydraulics, and excellent fuel efficiency to meet diverse operational requirements.
Bucket Capacity1.6 m³
Bucket Capacity (description)The large-capacity 1.6 m³ bucket improves loading efficiency and reduces cycle times, making the XG836FL ideal for bulk excavation, material handling, and high-production earthmoving applications.
Bucket Digging Force227 kN (ISO)
Bucket Digging Force (description)Producing an impressive 227 kN digging force, the XG836FL easily handles compacted soil, rock, and other demanding excavation tasks while maintaining smooth, efficient hydraulic performance.
